Masonry Image Gallery with Viewer using HTML, CSS, JavaScript and gsap
Categoreis :- GSAP Tutorials Web Design Techniques
Published On :- March 5, 2025 | code : | watch video tutorial :

Masonry Image Gallery with Viewer

This project is a responsive masonry-style image gallery with an interactive viewer. The gallery allows users to click on an image to open a full-screen viewer, navigate through images using next/previous buttons, and close the viewer smoothly. It is built using HTML, CSS, JavaScript, and GSAP for animations.

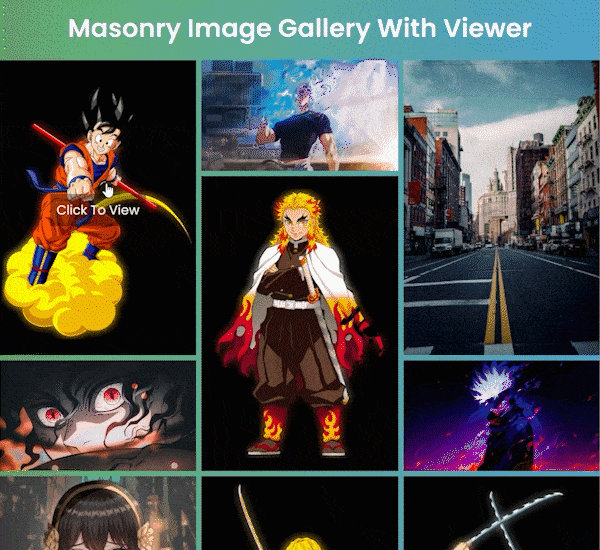

Final Output Preview

Before we dive into the code, here is a preview of what we will build:

Masonry Image Gallery with Viewer using HTML, CSS, JavaScript and gsap

Code Explanation (Step-by-Step)

1. HTML Structure

  • The .gallerContainer holds images in a masonry layout.
  • .galleryViewer acts as an overlay to display selected images.

<h1>masonry image gallery with viewer</h1>
        <div class="gallerContainer">
            <div class="imgBox"><img src="./images/img-1.jpg" alt=""></div>
            <div class="imgBox"><img src="./images/img-2.jpg" alt=""></div>
            <div class="imgBox"><img src="./images/img-3.jpg" alt=""></div>
            <div class="imgBox"><img src="./images/img-4.jpg" alt=""></div>
            <div class="imgBox"><img src="./images/img-5.jpg" alt=""></div>
            <div class="imgBox"><img src="./images/img-6.jpg" alt=""></div>
            <div class="imgBox"><img src="./images/img-7.jpg" alt=""></div>
            <div class="imgBox"><img src="./images/img-8.jpg" alt=""></div>
            <div class="imgBox"><img src="./images/img-9.jpg" alt=""></div>
            <div class="imgBox"><img src="./images/img-10.jpg" alt=""></div>
            <div class="imgBox"><img src="./images/img-11.jpg" alt=""></div>
            <div class="imgBox"><img src="./images/img-12.jpg" alt=""></div>
            <div class="imgBox"><img src="./images/img-13.jpg" alt=""></div>
            <div class="imgBox"><img src="./images/img-14.jpg" alt=""></div>
            <div class="imgBox"><img src="./images/img-15.jpg" alt=""></div>
            <div class="imgBox"><img src="./images/img-16.jpg" alt=""></div>
        </div>
        <!-- gallery viewer -->
        <div class="galleryViewer">
            <div class="imgBox"><img src="./images/img-1.jpg" alt=""></div>
            <div class="details"><span>1/4</span></div>
            <div class="arrows">
                <span class="prev"><i class="fa-solid fa-arrow-left"></i></span>
                <span class="next"><i class="fa-solid fa-arrow-right"></i></span>
            </div>
            <div class="close">
                <span><i class="fa-solid fa-xmark"></i></span>
            </div>
        </div>

2. CSS Styling

  • Uses CSS columns for masonry layout.
  • .galleryViewer is hidden by default and appears when active.

*,
            *::before,
            *::after {
                padding: 0;
                margin: 0;
                box-sizing: border-box;
            }

            html,
            body {
                width: 100%;
                height: 100%;
                position: relative;
            }

            body {
                background: linear-gradient(to right, #67b26f, #4ca2cd);
                font-family: 'poppins';
            }

            .no-scroll {
                overflow: hidden;
            }

            body h1 {
                text-align: center;
                color: white;
                text-transform: capitalize;
                margin-block: 1rem;
            }

            /* gallerContainer */
            .gallerContainer {
                max-width: 100%;
                width: 1000px;
                margin: 1rem auto;
                columns: 3;
                column-gap: 0.4rem;
            }

            .gallerContainer .imgBox {
                width: 100%;
                cursor: pointer;
                overflow: hidden;
                position: relative;
                isolation: isolate;
            }

            .gallerContainer .imgBox::before {
                content: "click to view";
                position: absolute;
                top: 60%;
                left: 50%;
                transform: translate(-50%, -50%);
                color: white;
                background-color: rgba(0, 0, 0, 0.351);
                text-transform: capitalize;
                font: 1.2rem;
                padding: 0.5rem;
                text-align: center;
                opacity: 0;
                visibility: hidden;
                transition: 300ms ease;
            }

            .gallerContainer .imgBox:hover::before {
                top: 50%;
                opacity: 1;
                visibility: visible;
            }

            .gallerContainer .imgBox img {
                width: 100%;
            }

            /* galleryViewer */
            .galleryViewer {
                position: fixed;
                top: 0;
                left: 0;
                width: 100%;
                height: 100%;
                background-color: rgba(0, 0, 0, 0.31);
                display: none;
                justify-content: center;
                align-items: center;
                flex-direction: column;
                gap: 1rem;
                opacity: 0;
            }

            .galleryViewer.active {
                display: flex;
            }

            .galleryViewer .imgBox {
                display: flex;
                max-width: 800px;
                max-height: 600px;
                border: 2px solid white;
            }

            .galleryViewer .imgBox img {
                width: 100%;
                height: 100%;
                object-fit: contain;
            }

            .galleryViewer .details {
                color: white;
                background-color: black;
                font-size: 1.4rem;
                padding: 0.4rem;
            }

            .galleryViewer .arrows {
                position: absolute;
                top: 50%;
                left: 0;
                width: 100%;
                display: flex;
                justify-content: space-between;
                align-items: center;
                padding: 1rem;
            }

            .galleryViewer .arrows span {
                background-color: white;
                font-size: 1.2rem;
                width: 45px;
                height: 45px;
                display: flex;
                justify-content: center;
                align-items: center;
                border-radius: 50%;
                cursor: pointer;
                transition: 300ms ease;
            }

            .galleryViewer .arrows span:hover {
                background-color: rgba(255, 255, 255, 0.371);
            }

            .galleryViewer .arrows span:active {
                background-color: rgba(255, 255, 255, 0.592);
                transform: scale(0.9);
            }

            .galleryViewer .close {
                width: 45px;
                height: 45px;
                background-color: red;
                display: flex;
                justify-content: center;
                align-items: center;
                color: white;
                cursor: pointer;
                position: absolute;
                top: 1rem;
                right: 1rem;
            }

            .galleryViewer .close:hover {
                background-color: rgba(255, 0, 0, 0.599);
            }

3. JavaScript Functionality

  • Uses event listeners to open/close viewer.
  • Uses GSAP for smooth animations.

document.addEventListener('DOMContentLoaded', () => {
            let galleryContainer = document.querySelector('.gallerContainer');
            let imageBoxes = galleryContainer.querySelectorAll('.imgBox')
            // gallery viewer
            let galleryViewer = document.querySelector('.galleryViewer');
            let viewerImageBox = galleryViewer.querySelector('.imgBox');
            let viewerImage = galleryViewer.querySelector('.imgBox img');
            let details = galleryViewer.querySelector('.details span');
            let nextBtn = galleryViewer.querySelector('.arrows .next');
            let prevBtn = galleryViewer.querySelector('.arrows .prev');
            let galleryCloser = galleryViewer.querySelector('.close');

            // slider variables
            let isAnimating = false;
            let currentSlideIndex = 0;

            //open gallery viewer
            imageBoxes.forEach((imgBox,index)=>{
                imgBox.addEventListener("click",()=>{
                    let img = imgBox.querySelector('img');
                    gsap.to(galleryViewer,{
                        opacity:1,
                        scale:1,
                        duration:0.3,
                        ease:"power2.in",
                        onStart:()=>{
                            galleryViewer.classList.add('active');
                            document.body.classList.add('no-scroll')
                            currentSlideIndex=index;
                        }
                    })
                    //show clicked image
                    gsap.fromTo(viewerImageBox,{
                        opacity:0,
                        scale:0.8,
                        onComplete:()=>{
                            viewerImage.src = img.src;
                            details.innerText = `${currentSlideIndex + 1}/${imageBoxes.length}`
                        }
                    },{
                        opacity:1,
                        scale:1,
                        duration:0.5,
                        ease:"power2.out"
                    })
                })
            })

            // to close gallery viewer
            galleryCloser.addEventListener("click",()=>{
                gsap.to(galleryViewer,{
                    opacity:0,
                    scale:0.8,
                    duration:0.3,
                    ease:"power2.in",
                    onComplete:()=>{
                        galleryViewer.classList.remove('active')
                        document.body.classList.remove('no-scroll')
                        currentSlideIndex=0;
                    }
                })
            })

            // slide functions
            function showSlide(isNext=true){
                isAnimating = true;
                viewerImage.src = imageBoxes[currentSlideIndex].querySelector('img').src;
                gsap.fromTo(viewerImageBox,{
                    opacity:0,
                    x:isNext ? "100%" :"-100%"
                },
            {
                opacity:1,
                x:"0%",
                duration:0.5,
                ease:"power2.out",
                onStart:()=>{
                    details.innerText = `${currentSlideIndex + 1}/${imageBoxes.length}`
                },
                onComplete:()=>{
                    isAnimating=false;
                }
            })
            }
            function nextSlide(){
                if(isAnimating) return
                currentSlideIndex = (currentSlideIndex +1)% imageBoxes.length;
                showSlide()
            }
            function prevSlide(){
                if(isAnimating) return
                currentSlideIndex = (currentSlideIndex -1 + imageBoxes.length)% imageBoxes.length;
                showSlide(false)
            }
            //call functions on click
            nextBtn.addEventListener('click',nextSlide)
            prevBtn.addEventListener('click',prevSlide)
            })

full code

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>masonry image gallery with viewer</title>
    <!-- font awesome cdn -->
    <link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/6.7.2/css/all.min.css" />
</head>
<style>
    *,
    *::before,
    *::after {
        padding: 0;
        margin: 0;
        box-sizing: border-box;
    }

    html,
    body {
        width: 100%;
        height: 100%;
        position: relative;
    }

    body {
        background: linear-gradient(to right, #67b26f, #4ca2cd);
        font-family: 'poppins';
    }

    .no-scroll {
        overflow: hidden;
    }

    body h1 {
        text-align: center;
        color: white;
        text-transform: capitalize;
        margin-block: 1rem;
    }

    /* gallerContainer */
    .gallerContainer {
        max-width: 100%;
        width: 1000px;
        margin: 1rem auto;
        columns: 3;
        column-gap: 0.4rem;
    }

    .gallerContainer .imgBox {
        width: 100%;
        cursor: pointer;
        overflow: hidden;
        position: relative;
        isolation: isolate;
    }

    .gallerContainer .imgBox::before {
        content: "click to view";
        position: absolute;
        top: 60%;
        left: 50%;
        transform: translate(-50%, -50%);
        color: white;
        background-color: rgba(0, 0, 0, 0.351);
        text-transform: capitalize;
        font: 1.2rem;
        padding: 0.5rem;
        text-align: center;
        opacity: 0;
        visibility: hidden;
        transition: 300ms ease;
    }

    .gallerContainer .imgBox:hover::before {
        top: 50%;
        opacity: 1;
        visibility: visible;
    }

    .gallerContainer .imgBox img {
        width: 100%;
    }

    /* galleryViewer */
    .galleryViewer {
        position: fixed;
        top: 0;
        left: 0;
        width: 100%;
        height: 100%;
        background-color: rgba(0, 0, 0, 0.31);
        display: none;
        justify-content: center;
        align-items: center;
        flex-direction: column;
        gap: 1rem;
        opacity: 0;
    }

    .galleryViewer.active {
        display: flex;
    }

    .galleryViewer .imgBox {
        display: flex;
        max-width: 800px;
        max-height: 600px;
        border: 2px solid white;
    }

    .galleryViewer .imgBox img {
        width: 100%;
        height: 100%;
        object-fit: contain;
    }

    .galleryViewer .details {
        color: white;
        background-color: black;
        font-size: 1.4rem;
        padding: 0.4rem;
    }

    .galleryViewer .arrows {
        position: absolute;
        top: 50%;
        left: 0;
        width: 100%;
        display: flex;
        justify-content: space-between;
        align-items: center;
        padding: 1rem;
    }

    .galleryViewer .arrows span {
        background-color: white;
        font-size: 1.2rem;
        width: 45px;
        height: 45px;
        display: flex;
        justify-content: center;
        align-items: center;
        border-radius: 50%;
        cursor: pointer;
        transition: 300ms ease;
    }

    .galleryViewer .arrows span:hover {
        background-color: rgba(255, 255, 255, 0.371);
    }

    .galleryViewer .arrows span:active {
        background-color: rgba(255, 255, 255, 0.592);
        transform: scale(0.9);
    }

    .galleryViewer .close {
        width: 45px;
        height: 45px;
        background-color: red;
        display: flex;
        justify-content: center;
        align-items: center;
        color: white;
        cursor: pointer;
        position: absolute;
        top: 1rem;
        right: 1rem;
    }

    .galleryViewer .close:hover {
        background-color: rgba(255, 0, 0, 0.599);
    }
</style>

<body>
    <h1>masonry image gallery with viewer</h1>
    <div class="gallerContainer">
        <div class="imgBox"><img src="./images/img-1.jpg" alt=""></div>
        <div class="imgBox"><img src="./images/img-2.jpg" alt=""></div>
        <div class="imgBox"><img src="./images/img-3.jpg" alt=""></div>
        <div class="imgBox"><img src="./images/img-4.jpg" alt=""></div>
        <div class="imgBox"><img src="./images/img-5.jpg" alt=""></div>
        <div class="imgBox"><img src="./images/img-6.jpg" alt=""></div>
        <div class="imgBox"><img src="./images/img-7.jpg" alt=""></div>
        <div class="imgBox"><img src="./images/img-8.jpg" alt=""></div>
        <div class="imgBox"><img src="./images/img-9.jpg" alt=""></div>
        <div class="imgBox"><img src="./images/img-10.jpg" alt=""></div>
        <div class="imgBox"><img src="./images/img-11.jpg" alt=""></div>
        <div class="imgBox"><img src="./images/img-12.jpg" alt=""></div>
        <div class="imgBox"><img src="./images/img-13.jpg" alt=""></div>
        <div class="imgBox"><img src="./images/img-14.jpg" alt=""></div>
        <div class="imgBox"><img src="./images/img-15.jpg" alt=""></div>
        <div class="imgBox"><img src="./images/img-16.jpg" alt=""></div>
    </div>
    <!-- gallery viewer -->
    <div class="galleryViewer">
        <div class="imgBox"><img src="./images/img-1.jpg" alt=""></div>
        <div class="details"><span>1/4</span></div>
        <div class="arrows">
            <span class="prev"><i class="fa-solid fa-arrow-left"></i></span>
            <span class="next"><i class="fa-solid fa-arrow-right"></i></span>
        </div>
        <div class="close">
            <span><i class="fa-solid fa-xmark"></i></span>
        </div>
    </div>
    <!-- gsap cdn -->
    <script src="https://cdnjs.cloudflare.com/ajax/libs/gsap/3.12.5/gsap.min.js"></script>
    <!-- script code -->
    <script>
        document.addEventListener('DOMContentLoaded', () => {
            let galleryContainer = document.querySelector('.gallerContainer');
            let imageBoxes = galleryContainer.querySelectorAll('.imgBox')
            // gallery viewer
            let galleryViewer = document.querySelector('.galleryViewer');
            let viewerImageBox = galleryViewer.querySelector('.imgBox');
            let viewerImage = galleryViewer.querySelector('.imgBox img');
            let details = galleryViewer.querySelector('.details span');
            let nextBtn = galleryViewer.querySelector('.arrows .next');
            let prevBtn = galleryViewer.querySelector('.arrows .prev');
            let galleryCloser = galleryViewer.querySelector('.close');

            // slider variables
            let isAnimating = false;
            let currentSlideIndex = 0;

            //open gallery viewer
            imageBoxes.forEach((imgBox, index) => {
                imgBox.addEventListener("click", () => {
                    let img = imgBox.querySelector('img');
                    gsap.to(galleryViewer, {
                        opacity: 1,
                        scale: 1,
                        duration: 0.3,
                        ease: "power2.in",
                        onStart: () => {
                            galleryViewer.classList.add('active');
                            document.body.classList.add('no-scroll')
                            currentSlideIndex = index;
                        }
                    })
                    //show clicked image
                    gsap.fromTo(viewerImageBox, {
                        opacity: 0,
                        scale: 0.8,
                        onComplete: () => {
                            viewerImage.src = img.src;
                            details.innerText = `${currentSlideIndex + 1}/${imageBoxes.length}`
                        }
                    }, {
                        opacity: 1,
                        scale: 1,
                        duration: 0.5,
                        ease: "power2.out"
                    })
                })
            })

            // to close gallery viewer
            galleryCloser.addEventListener("click", () => {
                gsap.to(galleryViewer, {
                    opacity: 0,
                    scale: 0.8,
                    duration: 0.3,
                    ease: "power2.in",
                    onComplete: () => {
                        galleryViewer.classList.remove('active')
                        document.body.classList.remove('no-scroll')
                        currentSlideIndex = 0;
                    }
                })
            })

            // slide functions
            function showSlide(isNext = true) {
                isAnimating = true;
                viewerImage.src = imageBoxes[currentSlideIndex].querySelector('img').src;
                gsap.fromTo(viewerImageBox, {
                    opacity: 0,
                    x: isNext ? "100%" : "-100%"
                },
                    {
                        opacity: 1,
                        x: "0%",
                        duration: 0.5,
                        ease: "power2.out",
                        onStart: () => {
                            details.innerText = `${currentSlideIndex + 1}/${imageBoxes.length}`
                        },
                        onComplete: () => {
                            isAnimating = false;
                        }
                    })
            }
            function nextSlide() {
                if (isAnimating) return
                currentSlideIndex = (currentSlideIndex + 1) % imageBoxes.length;
                showSlide()
            }
            function prevSlide() {
                if (isAnimating) return
                currentSlideIndex = (currentSlideIndex - 1 + imageBoxes.length) % imageBoxes.length;
                showSlide(false)
            }
            //call functions on click
            nextBtn.addEventListener('click', nextSlide)
            prevBtn.addEventListener('click', prevSlide)
        })
    </script>
</body>

</html>

Tags : #masonry image gallery #image viewer #responsive gallery #HTML CSS JavaScript gallery #GSAP animations #image slider #photo gallery #JavaScript lightbox #interactive gallery

Recent blog Posts

Animated Tabs with GSAP

🎯How to Create Animated Tabs with indicator by using javascript and GSAP: A Step-by-Step Guide

Categoreis :- Web Design Techniques JavaScript Tutorials GSAP Tutorials
view post March 21, 2025
3D Magnet Effect Button with GSAP

Create a Stunning 3D Magnet Effect Button with GSAP

Categoreis :- Web Design Techniques JavaScript Tutorials GSAP Tutorials
view post March 11, 2025
Masonry Image Gallery with Viewer using HTML, CSS, JavaScript and gsap

Masonry Image Gallery with Viewer using HTML, CSS, JavaScript and gsap

Categoreis :- GSAP Tutorials Web Design Techniques
view post March 5, 2025

🚀 GSAP Slider Tutorial: Create an Animated Image Carousel with GSAP

Categoreis :- Web Design Techniques JavaScript Tutorials GSAP Tutorials
view post March 2, 2025
Dropdown Menu Using HTML , Css and js

How to Create a Dropdown Menu Using HTML , Css and js (Step-by-Step Guide)

Categoreis :- Web Design Techniques CSS Animations JavaScript Tutorials
view post February 25, 2025
Dark Mode & Light Mode Toggle Using CSS and JavaScript

How to Create a Dark Mode & Light Mode Toggle Using CSS and JavaScript

Categoreis :- Web Design Techniques CSS Animations JavaScript Tutorials
view post February 23, 2025
view all posts

post categories

Web Design Techniques
Web Design Techniques
CSS Animations
CSS Animations
JavaScript Tutorials
JavaScript Tutorials
GSAP Tutorials
GSAP Tutorials

search post

search video tutorial
